Supports 2-socket Intel® Xeon® Scalable processors and 32 DDR4 RAM slots for high-load workloads.
Equipped with 14 PCIe expansion slots and supports massive local storage resources.
Integrates patented DEMT, intelligent power consumption management, and FDM fault management.

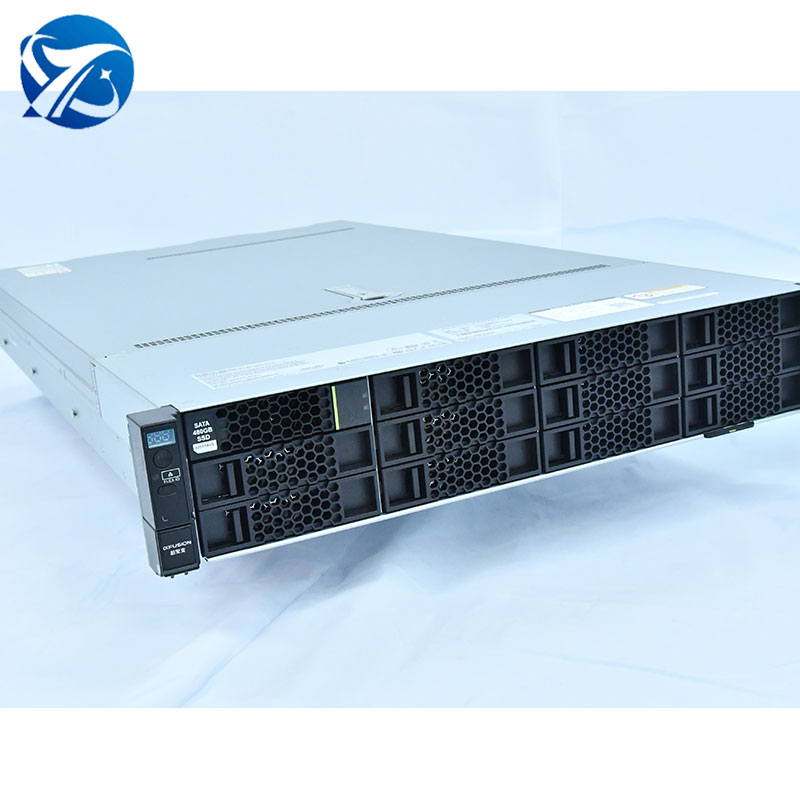

| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage |
Supports various drive configurations and hot swappable: • 8-31 x 2.5-inch SAS/SATA/SSD drives • 12-20 x 3.5-inch SAS/SATA drives • 4/8/16/24 NVMe SSDs • 45 x 2.5-inch drives or 34 full-NVMe SSDs Supports flash storage: • Dual M.2 SSDs |
| RAID Support | Supports RAID 0, 1, 10, 1E, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration. |
| Network | Provides expansion capability of multiple types of networks. Provides OCP 3.0 NICs. The two FlexIO card slots support two OCP 3.0 network adapters respectively, which can be configured as required. Hot swappable function supported. |
| PCIe Expansion | Provides a maximum of fourteen PCIe 4.0 slots, including one PCIe slot dedicated for RAID card, two FlexIO card slots dedicated for OCP 3.0, and eleven PCIe 4.0 slots for standard PCIe cards. |
| Chip Set | Intel C621A |
| Management |
The iBMC chip integrates one dedicated GE management port to provide comprehensive management functions such as fault diagnosis, automated O&M, and hardware security hardening. • The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management user interface based on HTML5/VNC KVM; provides out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control. • (Optional) Configured with the FusionDirector management software to provide advanced management functions throughout the lifecycle. |
| Operating Systems | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, etc. |
| Security Features | Power-on password, administrator password, TPM 2.0, security panel, secure boot, and cover opening detection. |
| Fan Modules | Four hot-swappable counter-rotating fan modules in N+1 redundancy mode |
| Operating Temperature | 5°C to 45°C (41°F to 113°F) (ASHRAE Classes A1 to A4 compliant) |
| Certifications | CE, UL, CCC, FCC, VCCI, RoHS, etc |
| Installation Kit | L-shaped guide rails, adjustable guide rails, and holding rails. |
| Height X Width X Depth | 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10in.) |
| Power Supply Units |
Two hot-swappable PSUs in 1+1 redundancy mode. Supported options include: • 900 W AC Platinum/Titanium PSUs • 1500 W AC Platinum PSUs (1000 W @ 100-127V, 1500 W @ 200-240V) • 1500 W 380 V HVDC PSUs • 1200 W -48 V to -60 V DC PSUs • 3000 W AC Titanium PSUs • 2000 W AC Platinum PSUs |
We usually quote within 24 hours after receiving your inquiry. If you are in a hurry, please inform us by email or telephone, and we will give priority to your inquiry.
Our whole machine products provide a 3-year replacement warranty. We maintain a complete and robust supply chain to address any after-sales problems quickly and efficiently.
All the memories and components we provide are original brand chips. We strictly inspect and test every single piece of hardware before each delivery to ensure reliable performance.
We support a variety of payment methods including Alipay, credit cards, bank card transfers, and T/T to eliminate your transaction concerns. Additionally, we pass third-party audits annually to guarantee financial safety.
Different products have different MOQ requirements. Let us know your specific demands and we will try our best to accommodate your needs. Small orders are also welcome.
We have specialized in this line for many years, prioritizing quality for long-term business. While external appearance may look identical, pricing differs due to internal configurations and quality levels. We guarantee high-quality builds matching our pricing tiers.
